Aircraft wings that change shape mid flight and flex like a birds – MIT and NASA

A ‘morphing wing’ system that is made of carbon fiber reinforced plastic and assembled by small robots.

Each of these flight scenarios, takeoff, landing, cruising and maneuvering etc, has its own set of optimal wing shapes. A conventional fixed wing aircraft (one shape) is a compromise that is not optimized for any of these, and therefore sacrifices efficiency and fuel usage. A wing that could alter its shape during operation could provide the best configuration at each stage of flight.

With this in mind a team of engineers built and tested a radically new kind of airplane wing, assembled from hundreds of tiny identical pieces. The wing can change shape to control the plane’s flight, and would provide a significant boost in aircraft production, flight, and maintenance efficiency, the researchers say.

Instead of requiring separate movable surfaces such as ailerons to control the roll and pitch of the plane, as conventional wings do, the new assembly system makes it possible to deform the whole wing, or just sections of it, by incorporating a mix of stiff and flexible components in its structure. The tiny sub-assemblies, which are bolted together to form an open, lightweight lattice framework, are then covered with a thin layer of similar polymer material as the skin.

The result is a wing that is much lighter, and thus much more energy efficient, than those with conventional designs, whether made from metal or composites. Because the structure, comprising thousands of tiny triangles of matchstick-like struts, is composed mostly of empty space, it forms a mechanical “metamaterial” that combines the structural stiffness of a rubber-like polymer and the extreme lightness and low density of an aerogel.

While this version was hand-assembled by a team of graduate students, the repetitive process is designed to be easily accomplished by a swarm of small, simple autonomous assembly robots. The design and testing of the robotic assembly system is the subject of an upcoming paper, Jenett says.

Because the overall configuration of the wing or other structure is built up from tiny subunits, it really doesn’t matter what the shape is. “You can make any geometry you want,” he says. “The fact that most aircraft are the same shape” (essentially a tube with wings) “is because of expense. It’s not always the most efficient shape.” But due to massive investments in design, tooling, and production it has been easier to stay with long established configurations up to this point.

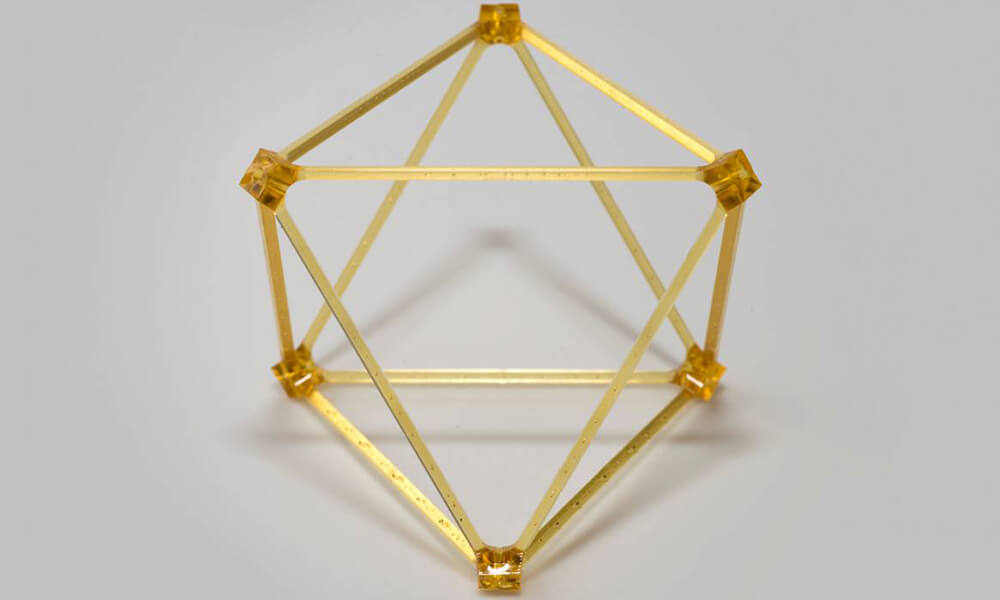

The individual parts for the wing uses injection molding with polyethylene resin in a complex 3-D mold, and produces each part. These are essentially a hollow cube made up of matchstick sized struts along each edge made in just 17 seconds, he says, which brings it a long way closer to scalable production levels.

“Now we have a manufacturing method,” he says. While there’s an upfront investment in tooling, once that’s done, “the parts are cheap,” he says. “We have boxes and boxes of them, all the same.”

The resulting lattice, he says, has a density of 5.6 kilograms per cubic meter. By way of comparison, rubber has a density of about 1,500 kilograms per cubic meter. “They have the same stiffness, but ours has less than roughly one-thousandth of the density,” Jenett says.

The new approach to wing construction could afford greater flexibility in the design and manufacturing of future aircraft. The new wing design was tested in a NASA wind tunnel and is described today in a paper in the journal Smart Materials and Structures, co-authored by research engineer Nicholas Cramer at NASA Ames in California; MIT alumnus Kenneth Cheung SM ’07 PhD ’12, now at NASA Ames; Benjamin Jenett, a graduate student in MIT’s Center for Bits and Atoms; and eight others.

While it is possible to include motors and cables to produce the forces needed to deform the wings, the team has taken this a step further and designed a system that automatically responds to changes in its aerodynamic loading conditions by shifting its shape — a sort of self-adjusting wing.

This is all accomplished by the careful design of the relative positions of struts with different amounts of flexibility or stiffness, designed so that the wing, or sections of it, bend in specific ways in response to particular kinds of stresses.

Cheung and others demonstrated the basic underlying principle a few years ago, producing a wing about a meter long, comparable to the size of typical remote-controlled model aircraft. The new version, about five times as long, is comparable in size to the wing of a real single seater plane and could be easy to manufacture.

The same system could be used to make other structures as well, Jenett says, including the wing-like blades of wind turbines, where the ability to do on-site assembly could avoid the problems of transporting ever-longer blades. Similar assemblies are being developed to build space structures, and could eventually be useful for bridges and other high performance structures.

The team included researchers at Cornell University, the University of California at Berkeley, the University of California at Santa Cruz, NASA Langley Research Center, Kaunas University of Technology in Lithuania, and Qualified Technical Services, Inc., in Moffett Field, California. The work was supported by NASA ARMD Convergent Aeronautics Solutions Program (MADCAT Project), and the MIT Center for Bits and Atoms.
